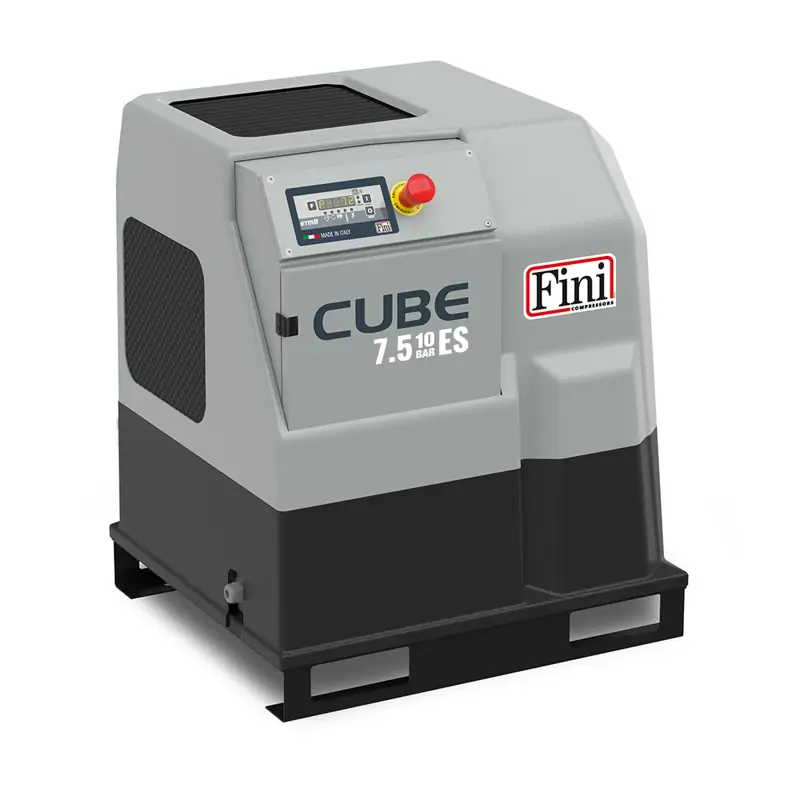

FINI CUBE ROTARY SCREW AIR COMPRESSOR – 7.5KW WITH DRYER

FINI

R76 448,02 ex
R87 915,22 inc

SKU : FI-V51PO92FNM743 Category :

Description

Coaxial rotary screw compressors without gears: all the power of the electric motor is transferred to the screw unit featuring top efficiency levels and operating reliability. The small size of the air-end/motor connection system allows for an extremely compact design for the compressor. It also means that the air dryer (optional) can be fitted inside the machine without affecting its overall dimensions. Noise levels ranging from 63 to 68 dB(A).

Additional information

Dimensions650 × 580 × 750 cm
kW

7.5

Hp

L/min

1050

m3/h

1.05

c.f.m

37.1

Bar

10

PSI

145

N Stages

1

Country Of Origin

Italy

V/Ph/Hz

400/3/50

Receiver

N/A

dB(A)

67

BSP

1/2"

Air End / PUMP

FS26

Drive Type

DIRECT DRIVE FIXED SPEED

Product Type

FLOOR MOUNTED & DRYER

Amps

N/A

SKU

FI-V51PO92FNM743

Model

CUBE 7.5-10 ES

Oil Capacity

8

Weight (KG)

133
